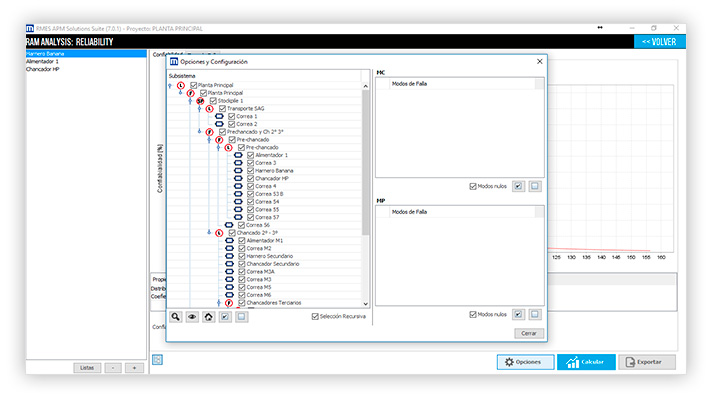

This tool is capable of generating graphs with the reliability distributions and failure rate for each equipment or subsystem. In the first stage it creates two graphs: a reliability graph with times and an equipment failure rate graph. These allow for comparison of reliability and equipment failure rate with all other nodes in the layout.
The report also provides visualizations of the life cycle stage for each piece of equipment and the parameters that define its reliability curve (alpha, beta and gamma), reliability and failure cost. This supports asset performance management analysis.
